Description

StarTech.com 1-port PCI Express RS232 Serial Adapter Card – PCIe Serial DB9 Controller Card 16550 UART – Low Profile – Windows/Linux

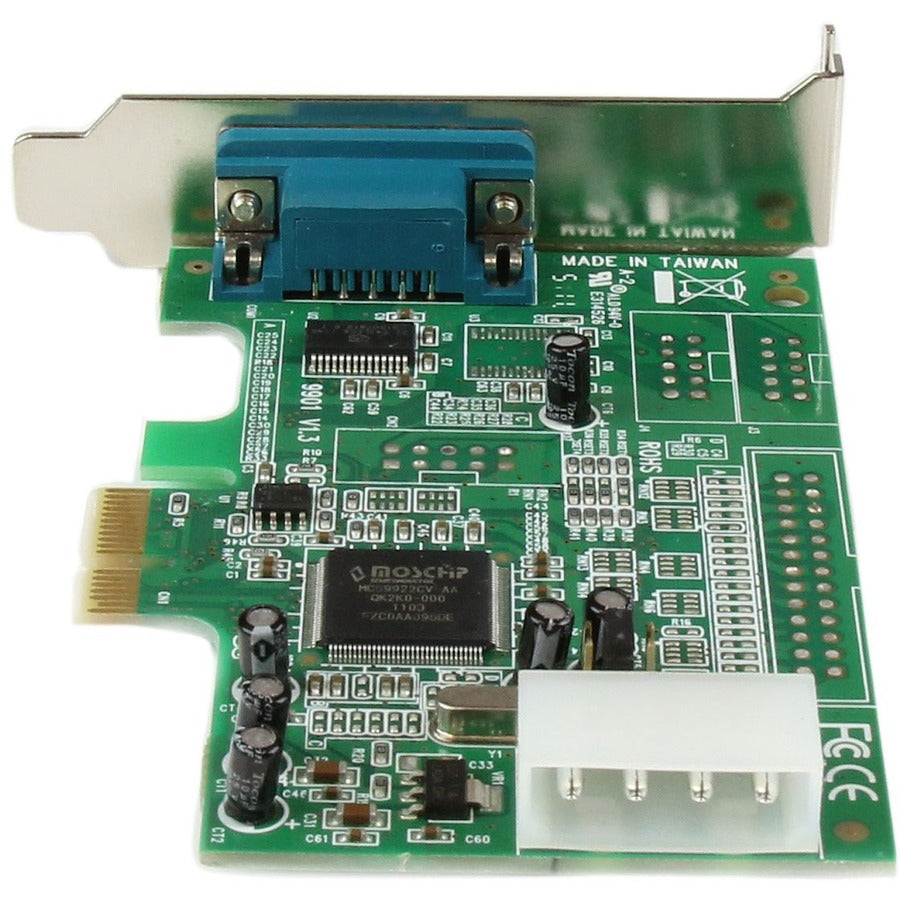

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX1S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

• 256 Byte FIFO
• Automated in-band software flow control using programmable Xon/Xoff in both directions
• Automated out-of-band flow control using CTS/RTS and DSR/DTR
• Compliant with PCI Express base specifications revision 1.1a
• Single chip design optimizes speed and reliability
• Native single-chip, single lane PCI Express
• Selectable power output on pin 9 for the serial port

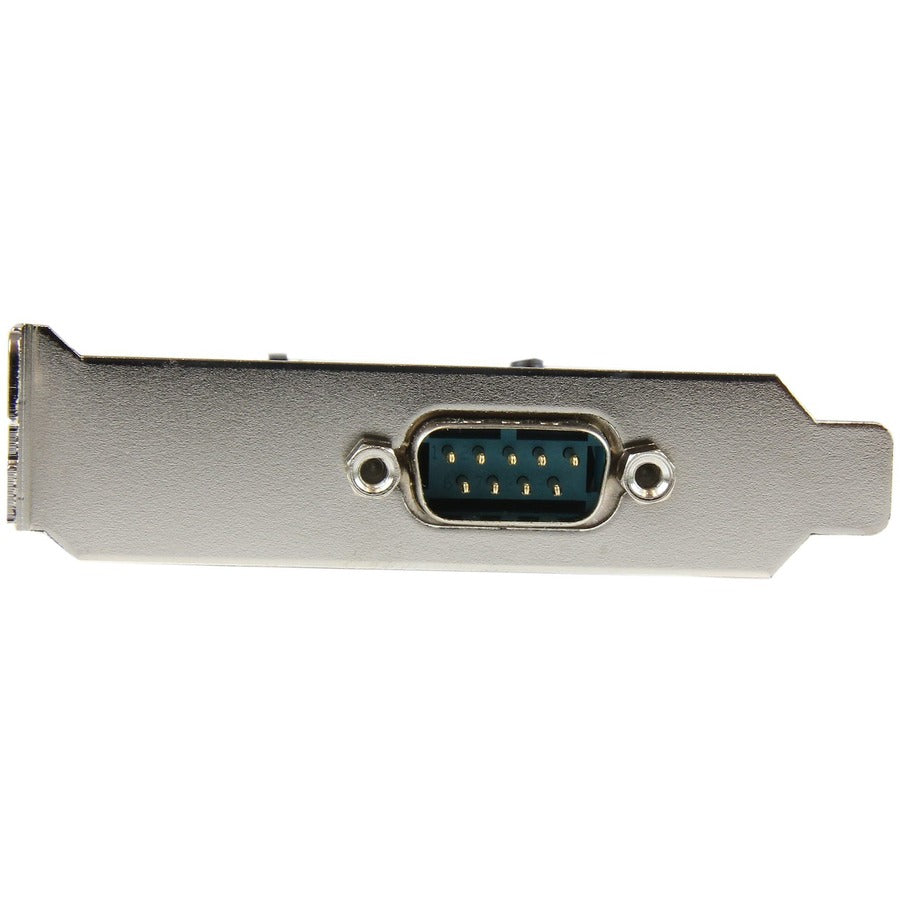

• Ships with half-height/low profile mounting bracket, includes standard bracket
• One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
