Description

SIIG HDMI 2.0 Audio Extractor / Embedder

Separates the high quality analog stereo audio and digital S/PDIF (Toslink) audio from the incoming HDMI signal or embeds external stereo analog audio or digital S/PDIF (Toslink) audio to the outgoing HDMI signal without losing any active audio channels

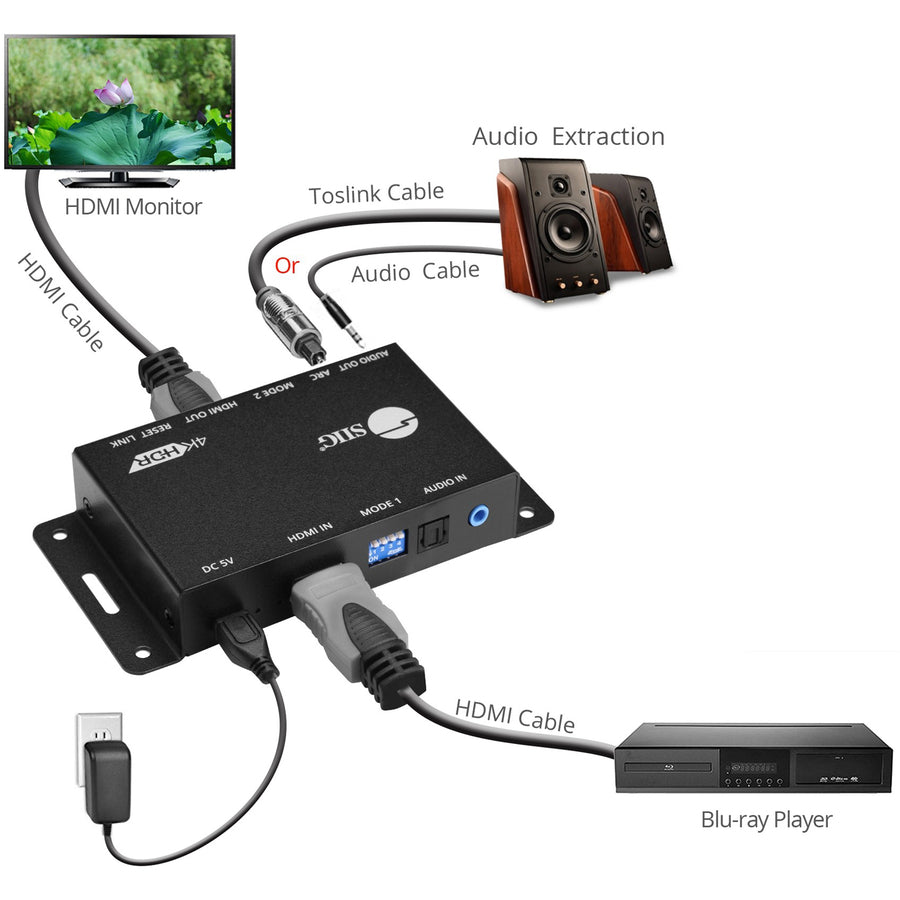

• Extracts high quality Stereo Analog audio and Digital Toslink S/PDIF audio from the incoming HDMI signal without losing any active audio channels

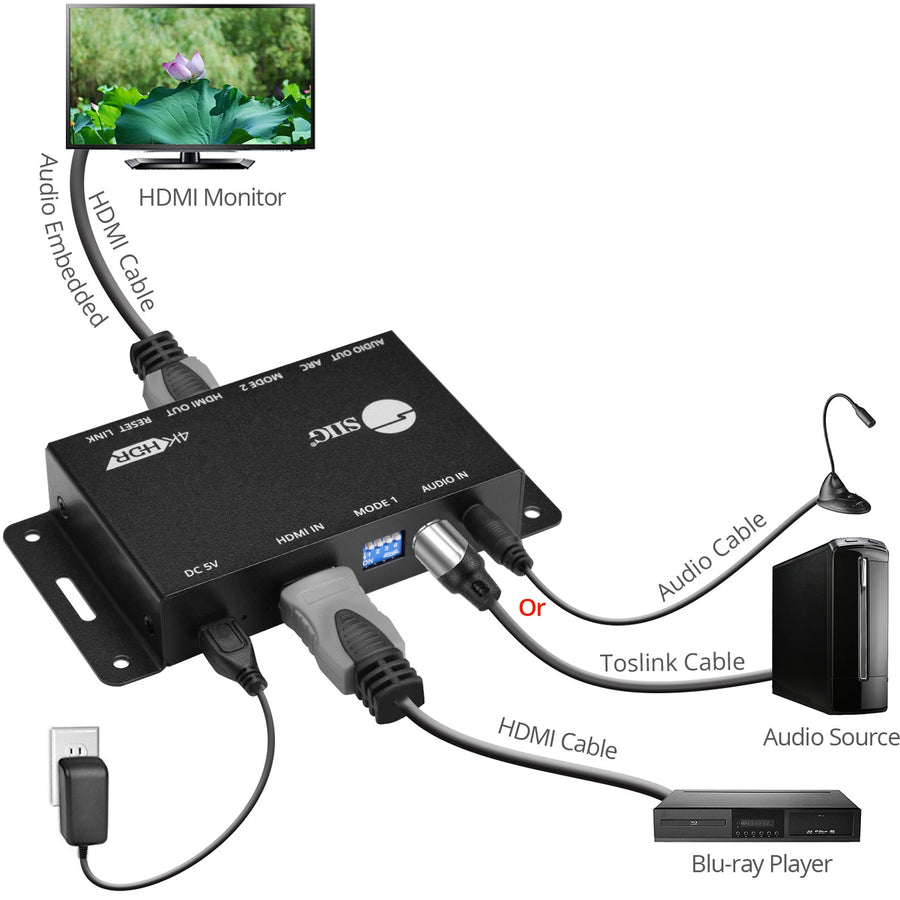

• Embeds external Stereo Analog audio or Digital S/PDIF (Toslink) audio to the outgoing HDMI signal
• Supports HDMI Input and Output up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit)
• Compatible with HDMI 2.0a and HDCP 2.2
• Video bandwidth up to 18Gbps
• Supports CEC bypass and Audio Return Channel (ARC) audio extraction via Toslink

• The signal extractor is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
• To fulfill your needs, this audio de-embedding function is a perfect choice
• Mountable to a wall, saves you floor space and yet easy-to-reach
