SIIG 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC – 100m

Extends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

• Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840×2160) through a single premium quality CAT5e/6 cable
  Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
• Delivers crystal clear picture quality with resolution up to 3840×2160@30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support

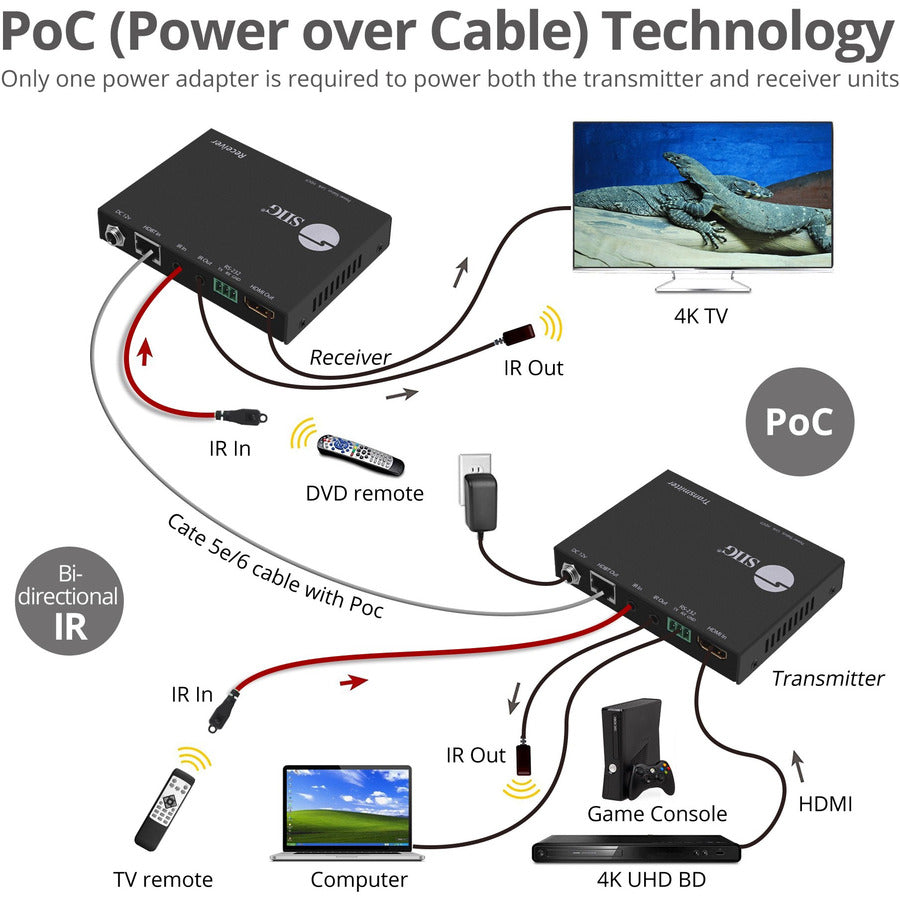

• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit
• Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use

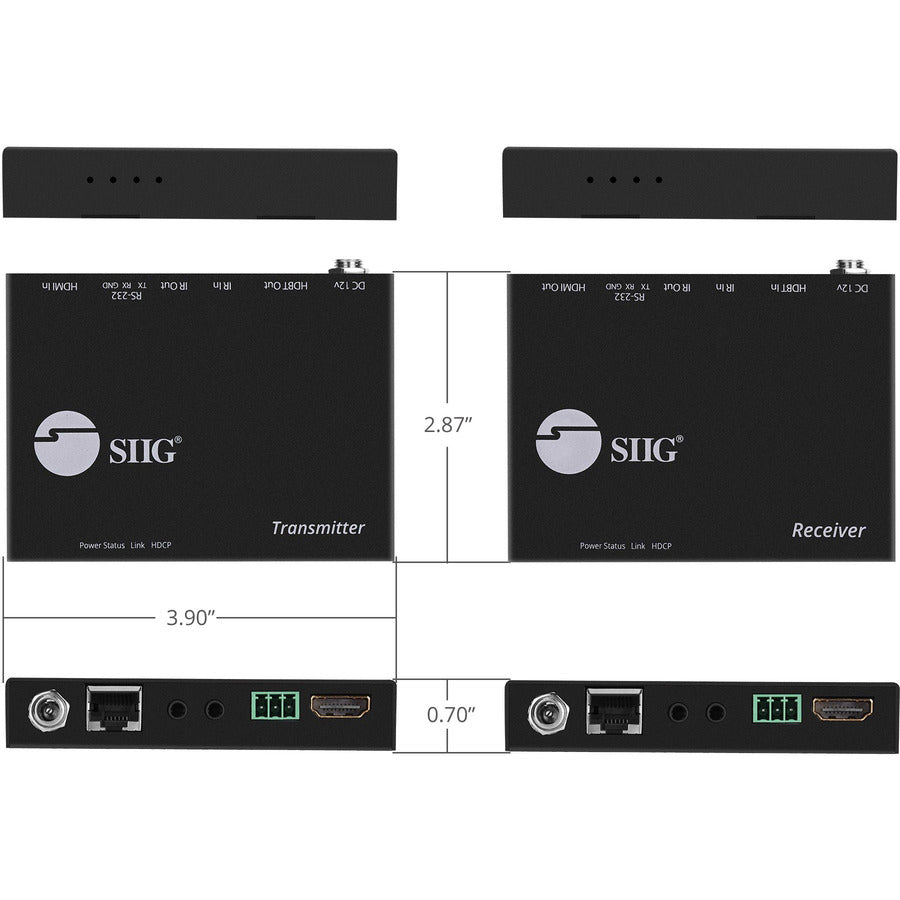

• Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

More from the Manufacturer

• Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
• 3840 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
• HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
• HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
• Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
• The CE-H23F11-S1 video extender transmitter/receiver provides plenty of freedom with wired connectivity
• 1 input devices supported to better accommodate your specific requirements
• 1 output devices supported to better accommodate your specific requirements
• 328.08 ft maximum operating distance to allow efficient coverage and maximum usability
• 4K graphics mode provides optimal video output with remarkable picture clarity
