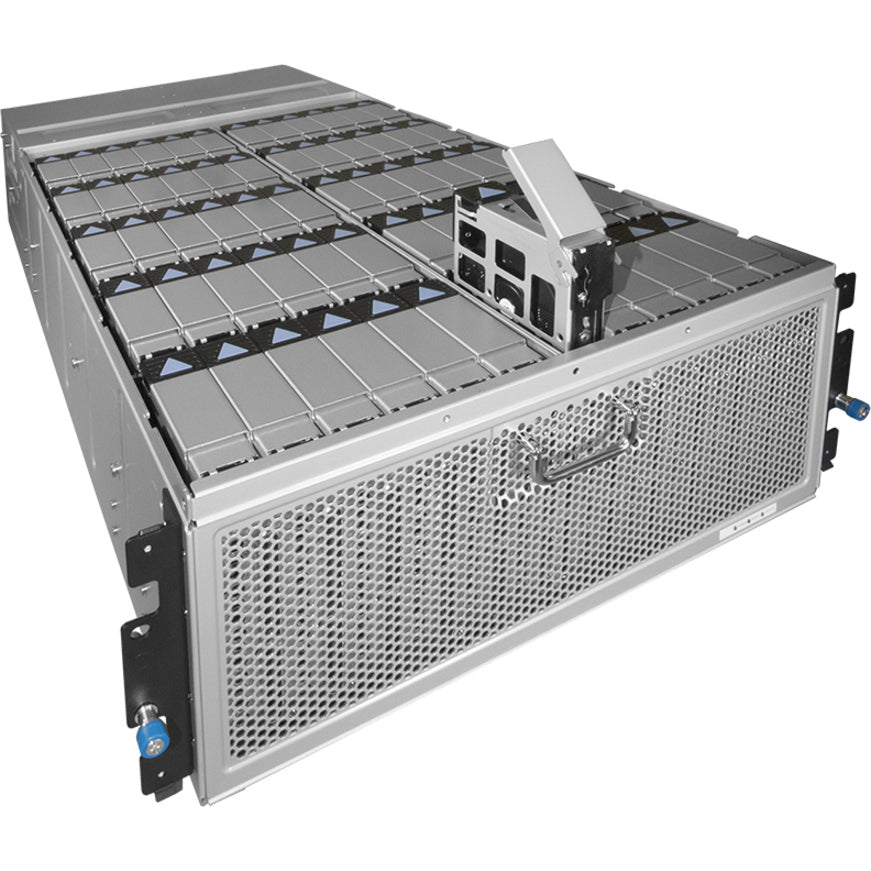

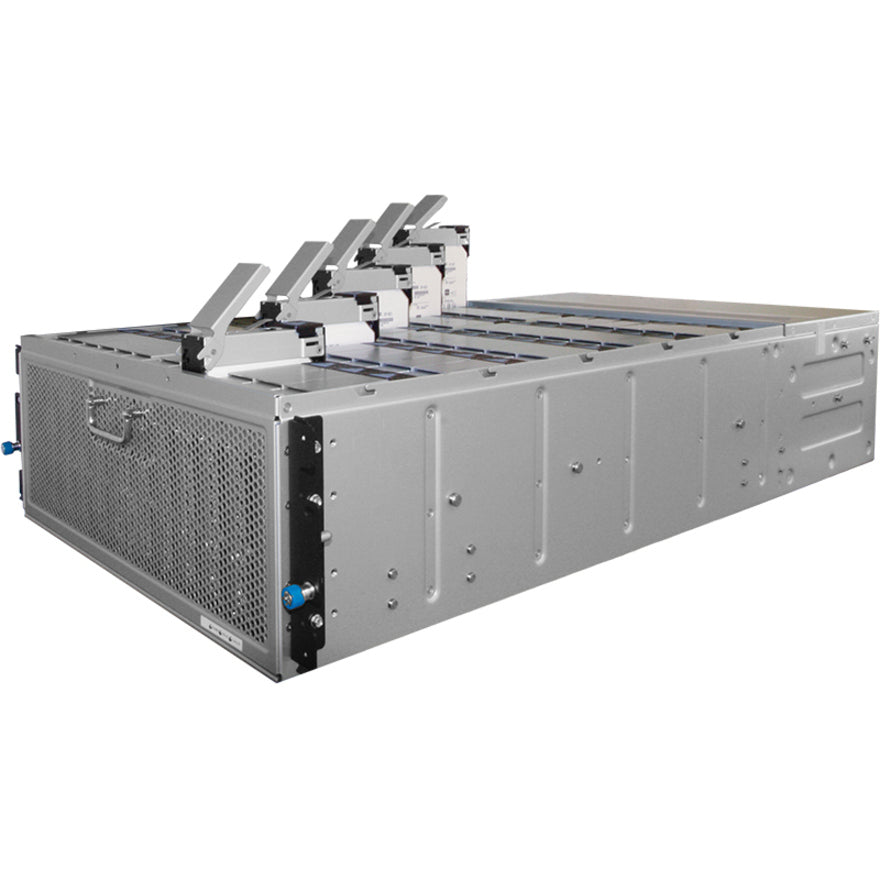

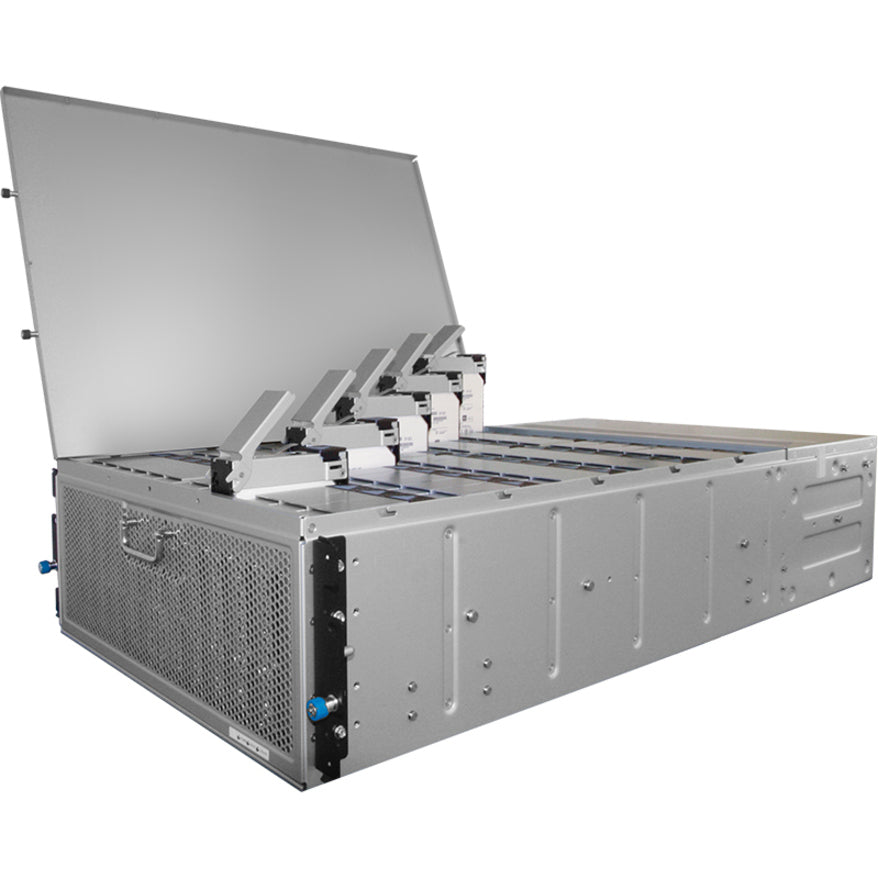

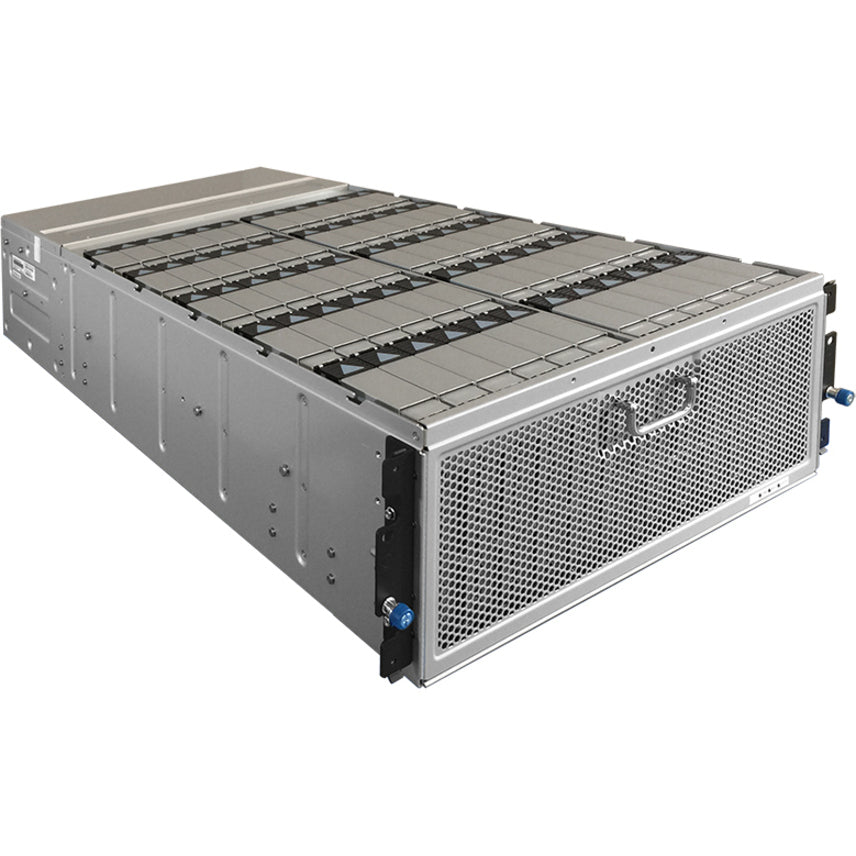

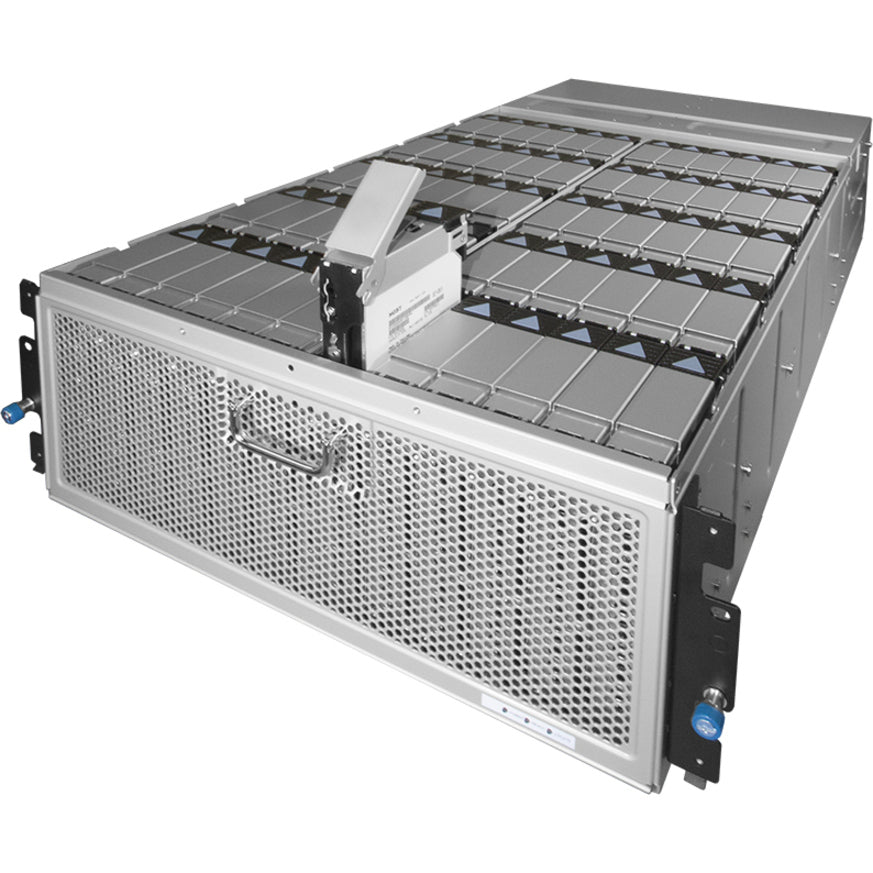

HGST 4U60 Drive Enclosure – 12Gb/s SAS Host Interface – 4U Rack-mountable

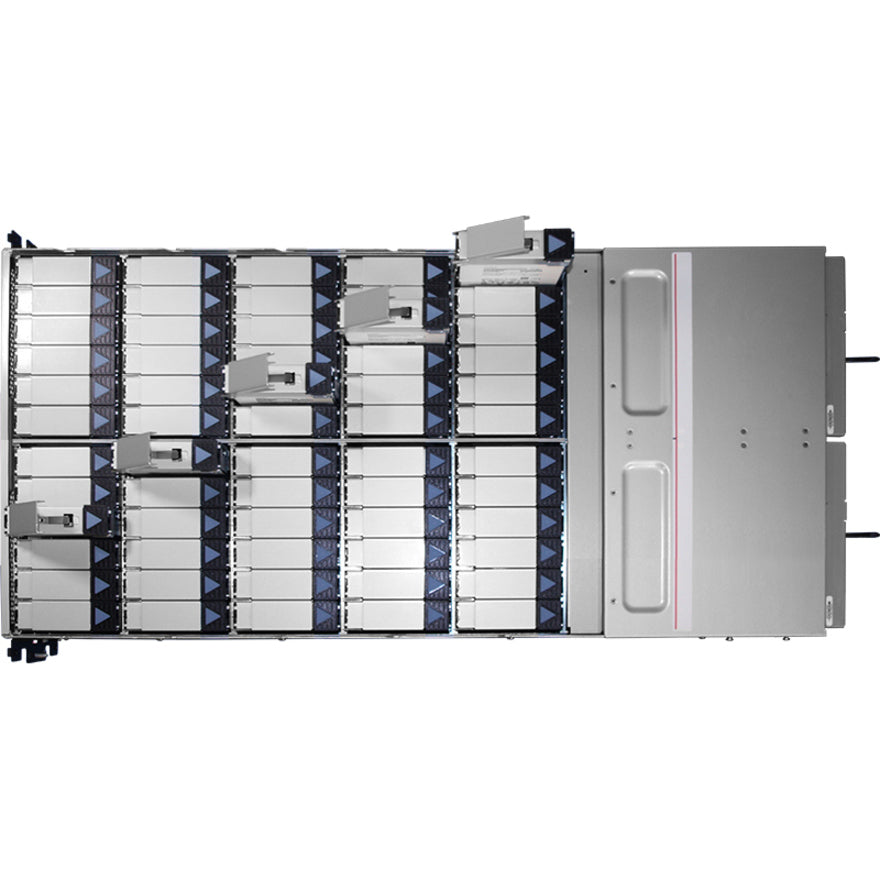

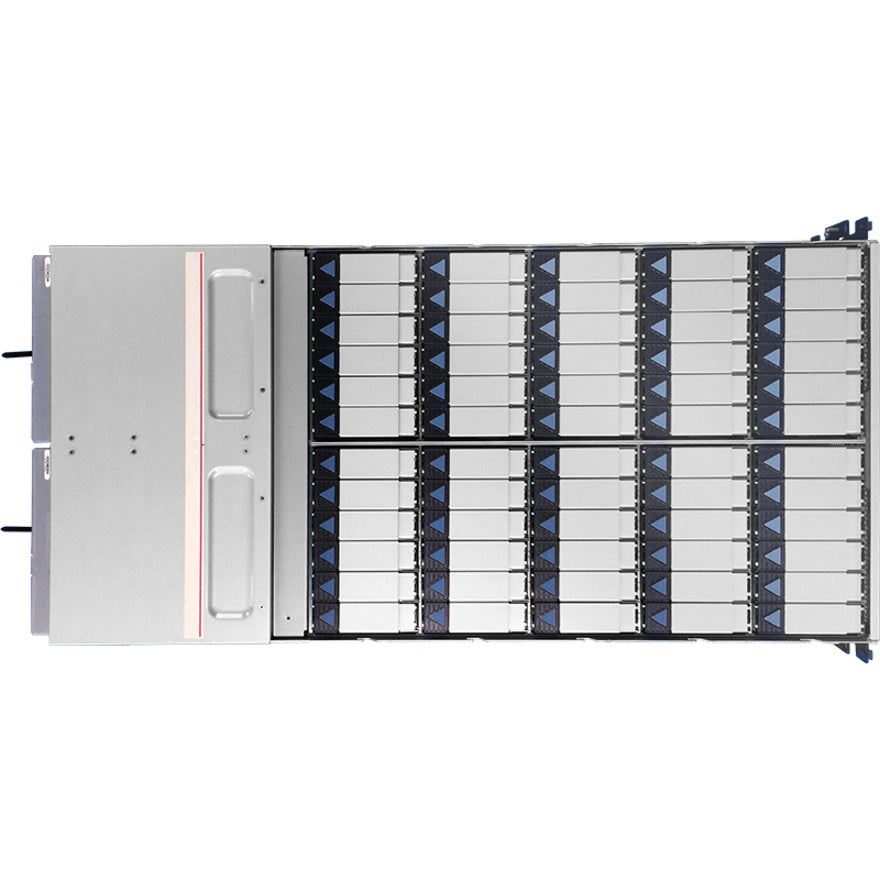

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.

This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It’s available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.

• 5-year limited warranty
• SCSI Enclosure Services (SES-3)
• Microsoft certified for Windows Server 2012, 2012R2
• Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs

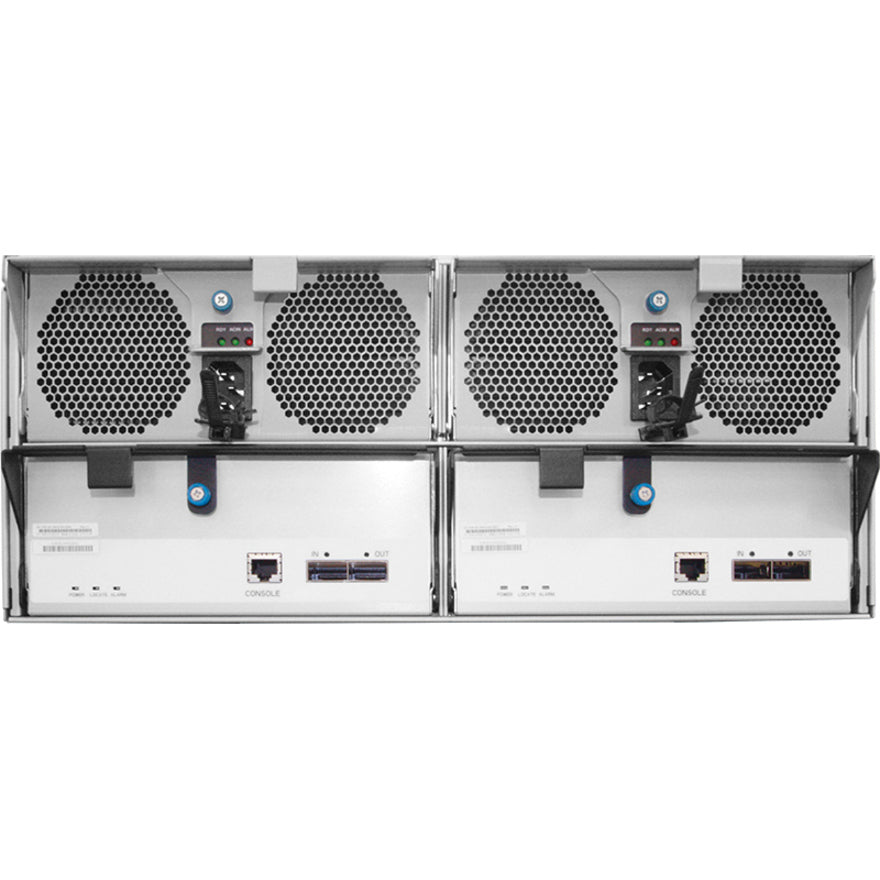

• Hot-swappable components: two power supplies with integrated fans, drive modules, and IO Modules
• Fully compliant with 12Gb/s SAS 3 interconnect
• Supports up to 4 storage enclosures for daisy-chaining
• Available with 512e or 4Kn sector size (by part number)
• Available with SAS drives for HA application or with SATA drives for cost-optimized applications
• Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
