Draper Acumen V 113″ Projection Screen

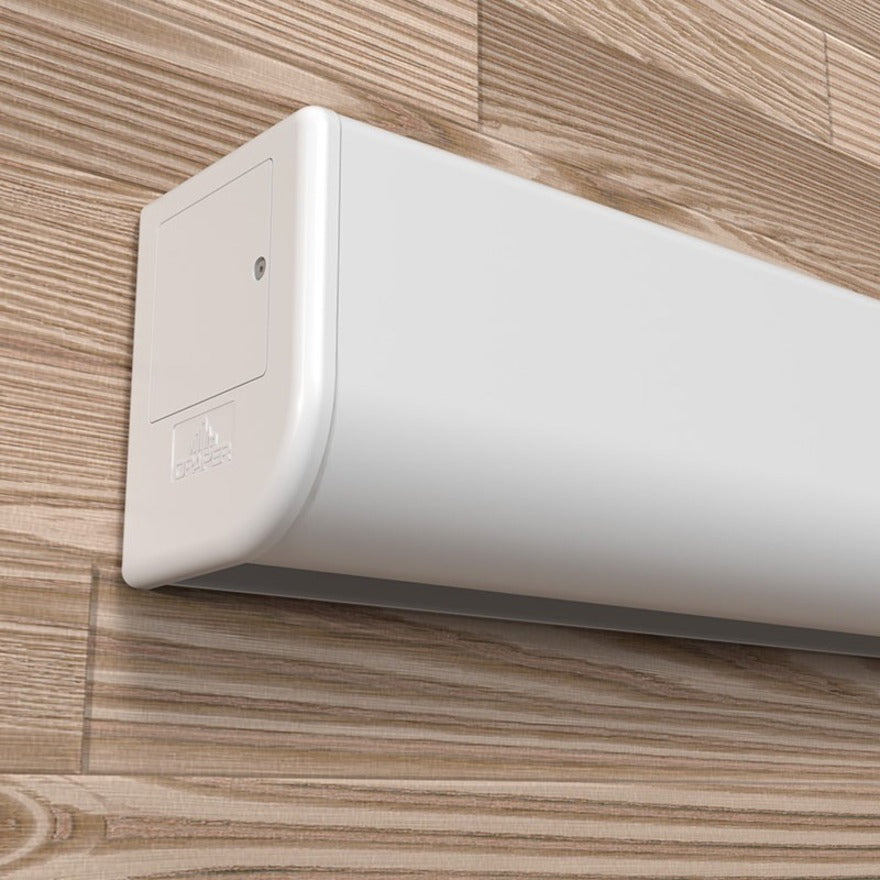

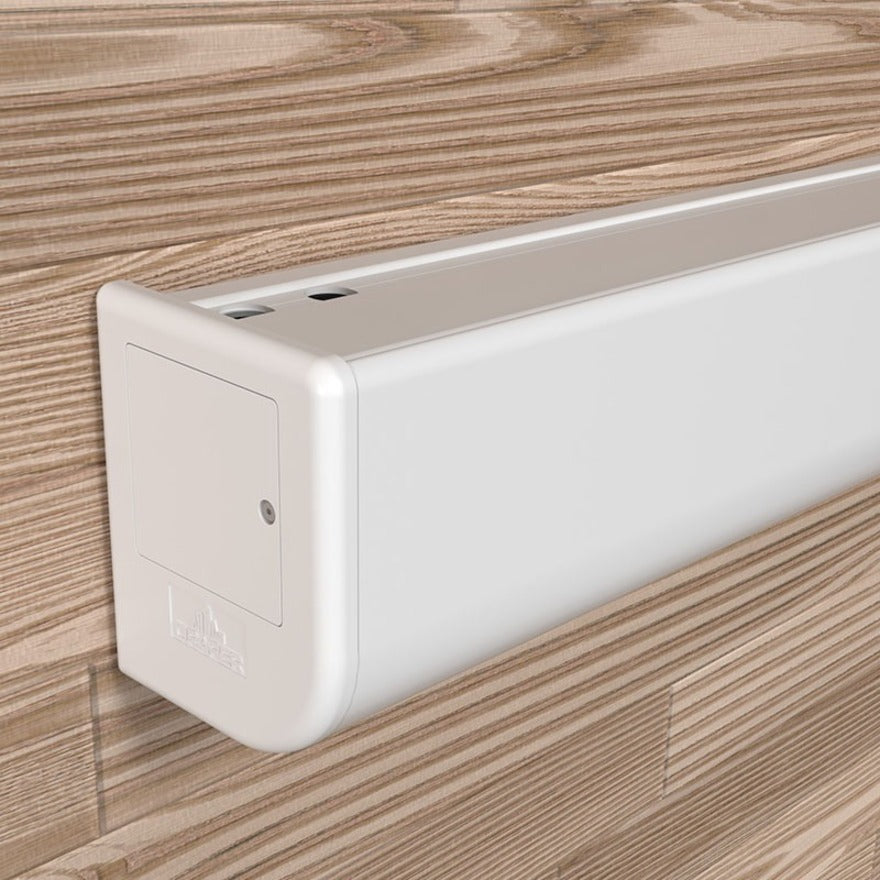

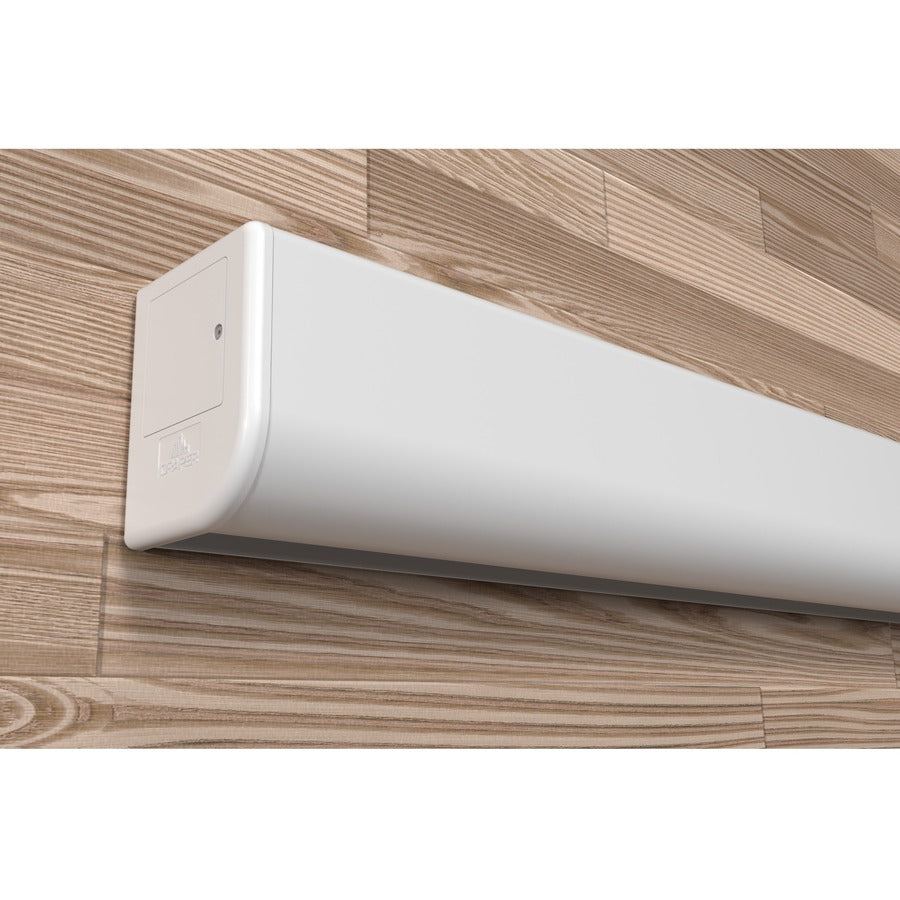

An attractive below-the-ceiling projection screen, Acumen® V blends seamlessly into today’s elegant interiors. Its smooth, curved aluminum housing and white powder coat finish complements any room design. Floating mounting brackets and removable fascia simplify installation. Tab-tensioned screens offer a perfectly flat viewing surface and RF welded tabs for a more durable seal. A wide variety of motor and control options (including quiet and low voltage) are available.

• Case dimensions: 7-1/8″ h x 5-7/8″ d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.
• Maximum image width up to 10′ (305 cm) wide.
• Full line of Draper® viewing surfaces including TecVision® are available for the Acumen® V.
• Rear projection surfaces available.
• Image area fully framed with black. Standard 12″ (30 cm) black drop at top of viewing area.
• Streamlined extruded aluminum case finished in white powder coat (standard).
• Fascia removable for easy access to roller and motor for service.
• Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
• Floating mounting brackets included.
• Seven-year warranty. *USA and Canada only.
