Description

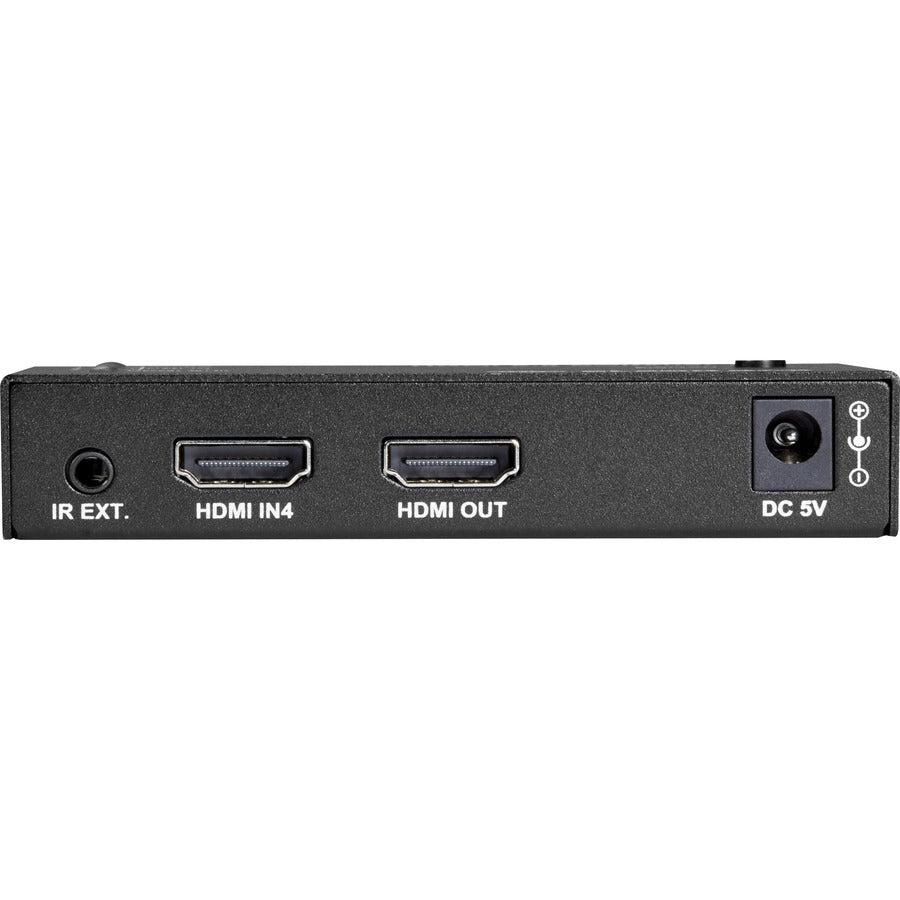

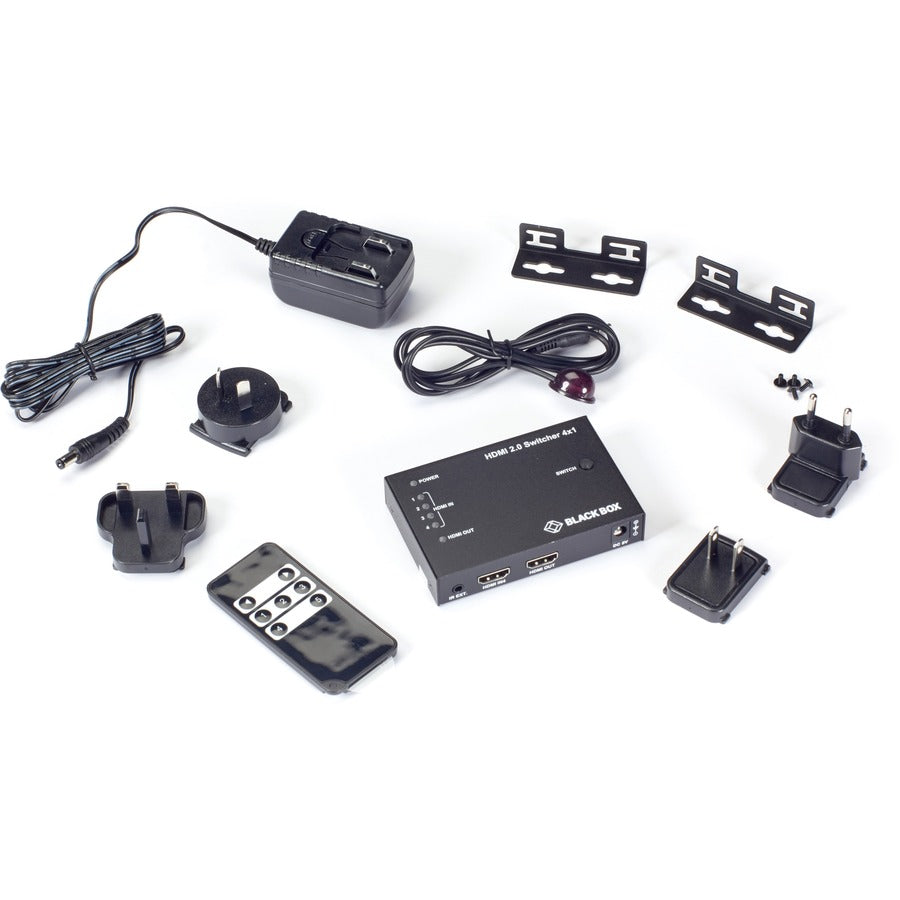

Black Box HDMI 2.0 4K Video Switch – 4×1

Switching between four HDMI sources to a single display is easier and more reliable. The HDMI 2.0 Video Switch – 4K60, HDCP, 3×1 features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K @ 60 Hz 4:4:4 8-bit, enabling four Ultra HD sources to be switched to one Ultra HD display. It also allows control through a top panel button, IR remote, and automatic switch. The switch is small, compact and easy to install, giving you the convenience of future-ready Ultra HD AV switching, and the reliability of cutting-edge HDMI 2.0 and HDCP 2.2 compatibility

With increased bandwidth up to 18 Gbps, you can switch signals from four sources to a single display while maintaining:

• Higher resolutions
• Higher frame rates
• Multiple full HD streams in the same pipe
• 21:9 aspect ratio

• 4 to 1 HDMI switching for UHD video
• Fully compliant with HDMI 2.0 and HDCP 2.2
• HDMI inputs and output support resolutions up to 4K @ 60 Hz 4:4:4 8-bit
• Supports top panel button, IR remote, and automatic switch control options
• Compact size
• Supports locking HDMI cables to prevent accidental cable disconnections
• CE, FCC, IC, RCM, and VCCI approvals
