Description

Black Box 4K HDMI IR Extender 70M

• Extend HDMI over a single CATx cable
  The 4K CATx Lite Extender uses CATx technology for extension. Distribute digital signage content or other HD video and audio over a single CAT5e/6 cable. The transmitter-receiver combo makes it easy to send digital full 1080p-quality video and audio plus IR and serial RS-232 control signals up to 230 feet (70 m) or 4K/UHD up to 131 feet (40 m).

• Optimal PC-to-screen performance
  The 4K CATx Lite Transmitter and Receiver feature EDID copy function and are HDCP-compliant and Blu-ray ready.

• Lossless compression for HD extension
  The 4K CATx Lite Extender transmits broadcast-quality video and audio as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 3840 x 2160 (Full HD, WUXGA, UHD) at 30 Hz.

• Simplified control
  The extender supports CEC passthrough and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV’s remote controller to change settings on a source device in another room.

• 4K CATx Lite Extender Kit is great for:
  – Hospitality (hotels and conference rooms)
  – Digital signage (airports and shopping malls)
  – Surveillance cameras
  – Whole-home networking
  – Point-to-point consumer application

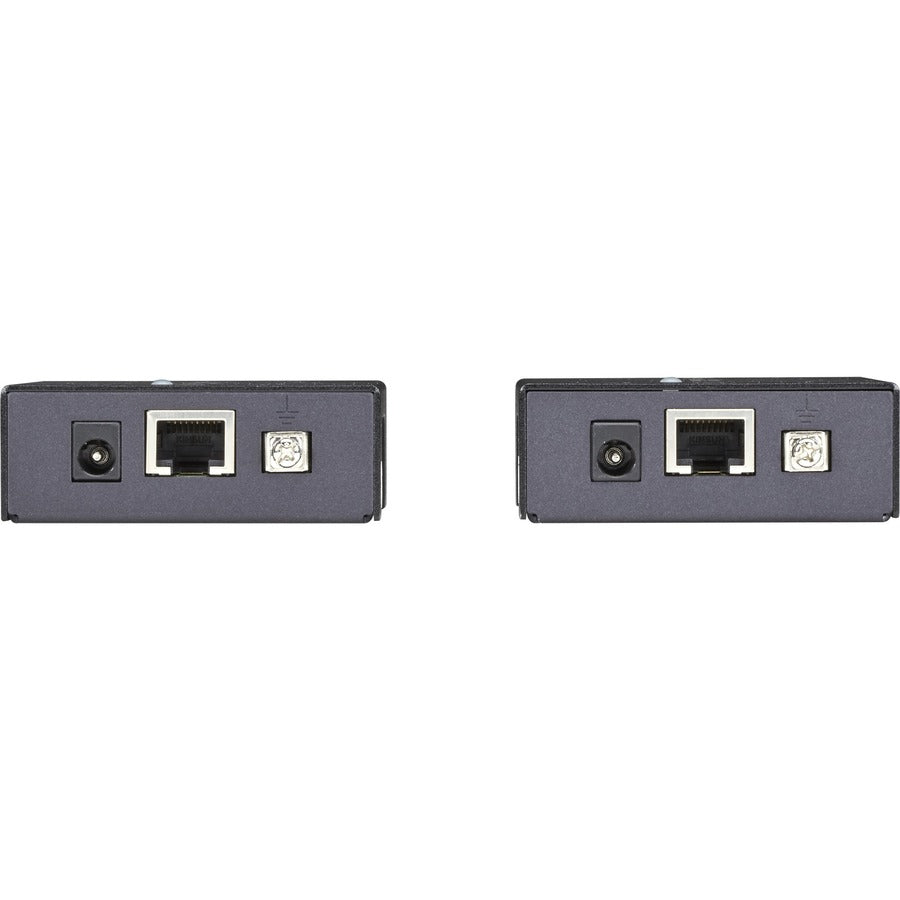

• This kit includes an HDMI transmitter and HDMI receiver
• Uses CATx technology
• Send HDMI signals to multimedia displays up to 230 feet (70 m) using a single CAT5e/6 cable
